CCT Switching Isolated Series
Home » Products » Drive Power Supply » CCT Switching Isolated Series

loading

CCT Switching Isolated Series

Input：85~265Vac
PF：≥0.6
Surge protection：2.5Kv
Efficiency：0.86
Availability:
Inquire

facebook sharing button
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button
Product Description
WattInputOutputCurrentPFSurge protectionEfficiencySize
1-3W85~265Vac5-12Vdc300mA≥0.62.5Kv0.8665*31*20
4-7W85~265Vac24-42Vdc160mA≥0.62.5Kv0.8665*31*20

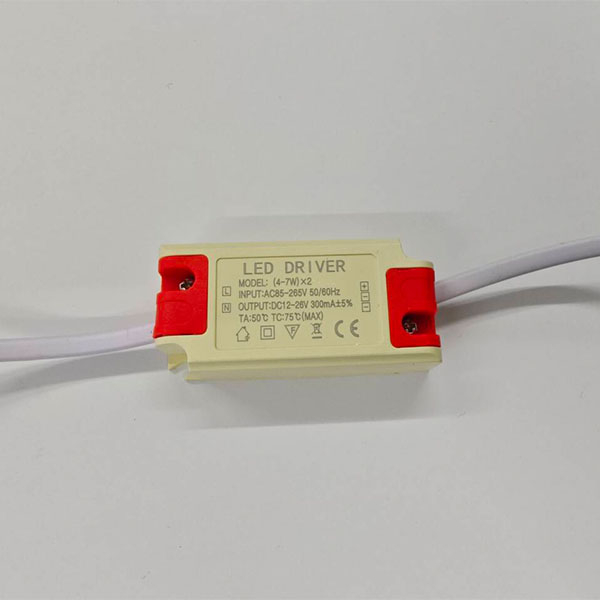

4-7W85~265Vac12-28Vdc300mA≥0.62.5Kv0.8665*31*20
15-20W85~265Vac24-42Vdc380mA≥0.62.5Kv0.8690*36*22

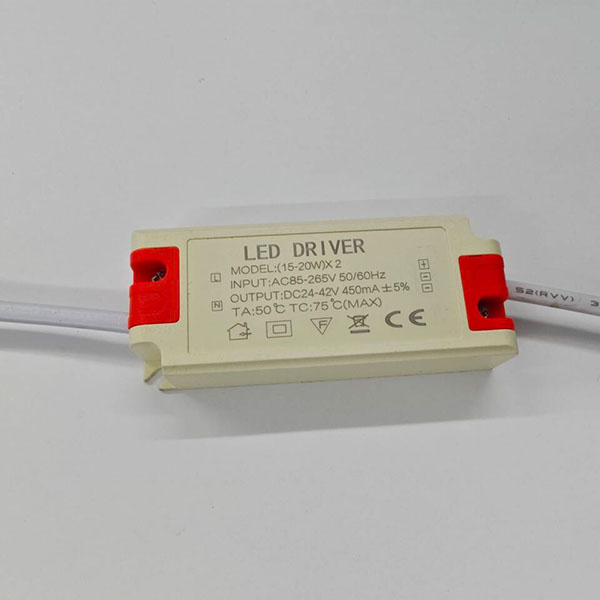

15-20W85~265Vac24-42Vdc450mA≥0.62.5Kv0.8690*36*22

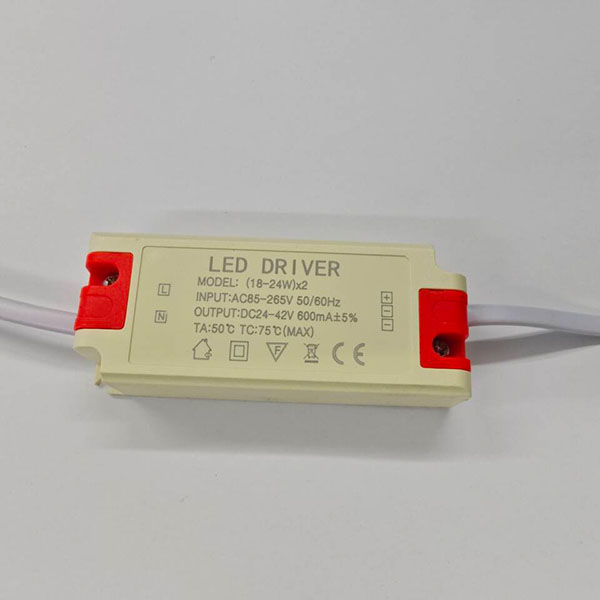

18-24W85~265Vac54-80Vdc300mA≥0.62.5Kv0.8690*36*22
18-24W85~265Vac54-80Vdc500mA≥0.62.5Kv0.8690*36*22
18-24W85~265Vac54-80Vdc600mA≥0.62.5Kv0.8690*36*22

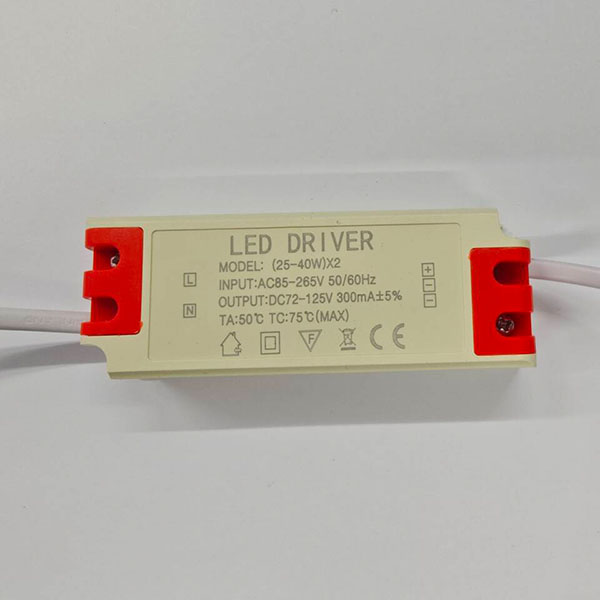

25-36W85~265Vac72-144Vdc300mA≥0.62.5Kv0.86104*38*24
25-36W85~265Vac24-42Vdc750mA≥0.62.5Kv0.86104*38*24
25-36W85~265Vac24-42Vdc900mA≥0.62.5Kv0.86104*38*24
40-60W85~265Vac120-180Vdc200mA≥0.62.5Kv0.86104*38*24
