Isolation project Series
Home » Products » Drive Power Supply » Isolation project Series

loading

Isolation project Series

Input voltage：85~265V
Power factor：≥0.6
Surge protection：2.5Kv
Efficiency：0.86
Availability:
Inquire

facebook sharing button
wechat sharing button
linkedin sharing button
whatsapp sharing button
sharethis sharing button
Product Description
WattInput voltageOutput voltageOutput currentPower factorSurge protectionEfficiencySize

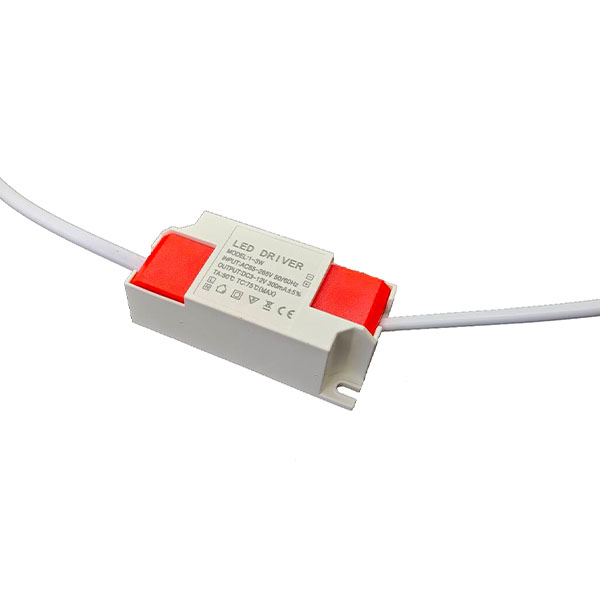

1-3W85~265V3-12V300mA≥0.62.5Kv0.8668*31*23MM
4-6W85~265V24-42V120mA≥0.62.5Kv0.8668*31*23MM
4-7W85~265V24-42V160mA≥0.62.5Kv0.8668*31*23MM

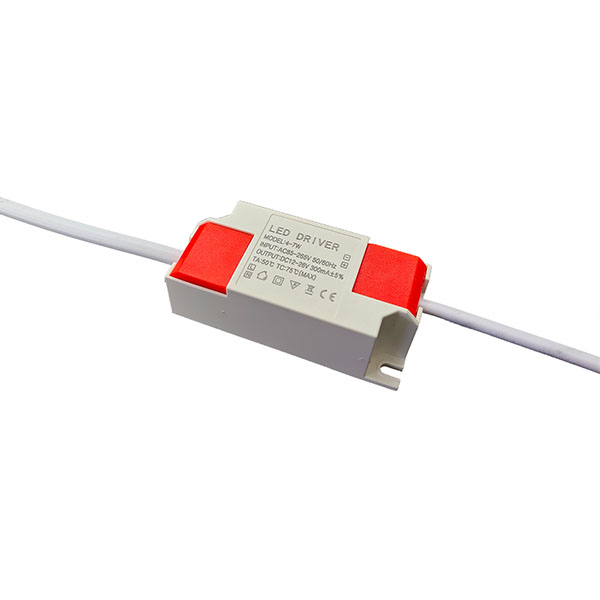

4-7W85~265V12-26V300mA≥0.62.5Kv0.8668*31*23MM
5-8W85~265V24-42V180mA≥0.62.5Kv0.8668*31*23MM
8-12W85~265V24-42V220mA≥0.62.5Kv0.8686*36*23MM
8-12W85~265V24-42V250mA≥0.62.5Kv0.8686*36*23MM

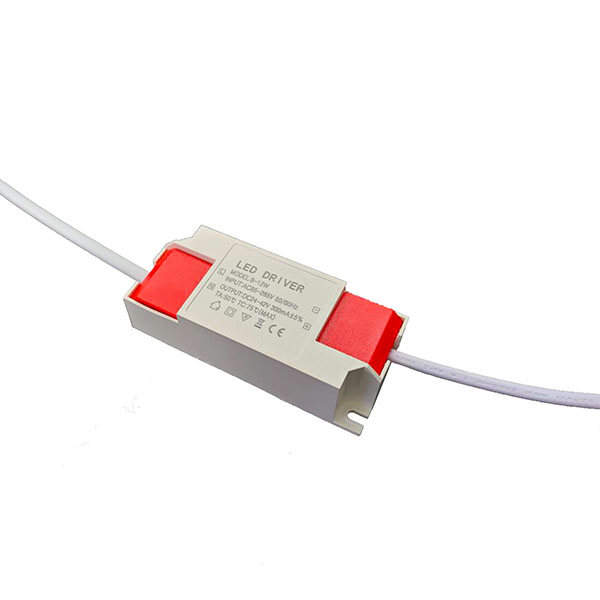

8-12W85~265V24-42V300mA≥0.62.5Kv0.8686*36*23MM
12-18W85~265V36-72V250mA≥0.62.5Kv0.8686*36*23MM
12-18W85~265V36-72V300mA≥0.62.5Kv0.8686*36*23MM
15-20W85~265V24-42V360mA≥0.62.5Kv0.86100*36*23MM
15-20W85~265V24-42V450mA≥0.62.5Kv0.86100*36*23MM
18-24W85~265V54-100V300mA≥0.62.5Kv0.86100*36*23MM
18-24W85~265V24-42V500mA≥0.62.5Kv0.86100*36*23MM

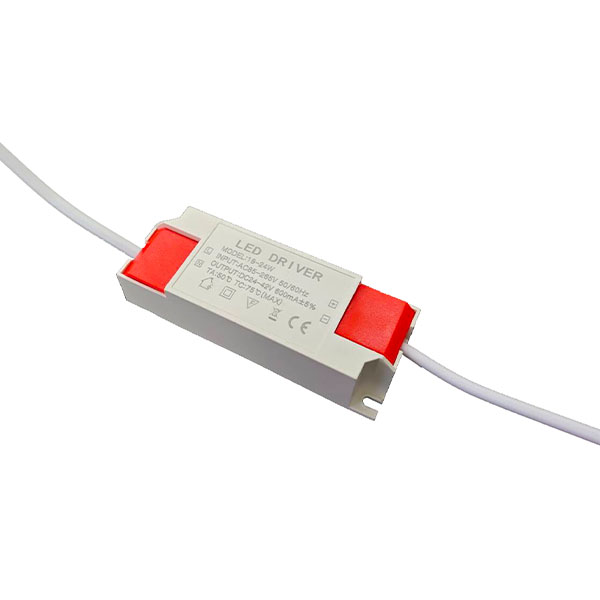

18-24W85~265V24-42V600mA≥0.62.5Kv0.86100*36*23MM
25-40W85~265V72-144V250mA≥0.62.5Kv0.86116*36*23MM
25-40W85~265V72-144V300mA≥0.62.5Kv0.86116*36*23MM
25-40W85~265V24-42V700mA≥0.62.5Kv0.86116*36*23MM
25-40W85~265V24-42V750mA≥0.62.5Kv0.86116*36*23MM
25-40W85~265V24-42V900mA≥0.62.5Kv0.86116*36*23MM
40-60W85~265V54-100V600mA≥0.62.5Kv0.86130*38*25MM
40-60W85~265V24-42V900mA≥0.62.5Kv0.86130*38*25MM
40-60W85~265V36-65V1200mA≥0.62.5Kv0.86130*38*25MM

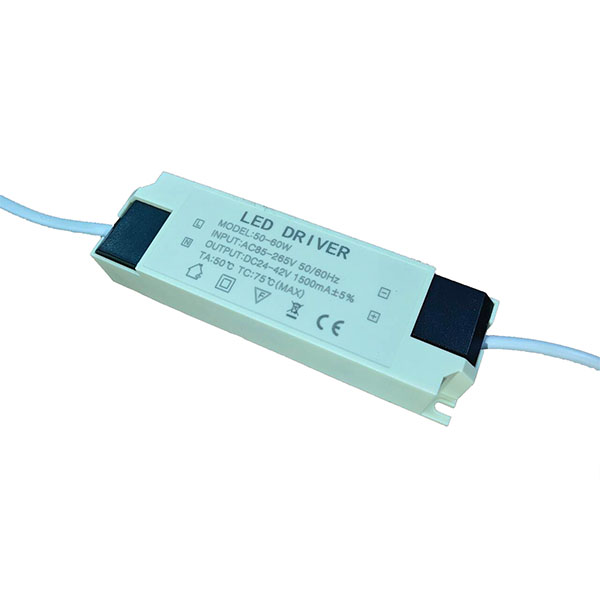

40-60W85~265V24-42V1500mA≥0.62.5Kv0.86130*38*25MM
